Pilatus PC-12 NG

Pilatus PC-12 NG

Range

1,803 NM

Cruise speed

280 kts

Seats

6-7

Technical Specifications

General information

Model namePC-12 NG
ManufacturerPilatus Aircraft
Aircraft categoryturboprop
ICAO DesignatorPC12
Start/End of Production2008 - 2019
Number of pilot(s)1-2

Performances

Range (with IFR reserves)1803 NM (3339 km)
Ferry range2088 NM (3867 km)
Cruise speed280 kts (519 km/h)
Max Operating Speed – VMO240 KIAS
Long-Range Cruise Speed - LRC260 KTAS
Approach Speed76 kts
Takeoff Distance793 m
Average Landing Distance661 m
Rate of Climb1920 ft/min
Service Ceiling30000 ft
Thrust1200 shp

Aircraft technology

Engine typeTurboprop
Engine(s)1 x Pratt & Whitney Canada PT6A-67P
AvionicsHoneywell Primus Apex

Dimensions and capacity

Aircraft length14.4 m
Aircraft height4.26 m
Wing span16.23 m
Cabin height1.47 m (4.8 ft)
Cabin length5.16 m (16.9 ft)
Cabin width1.52 m (5.0 ft)
Baggage volume1.13 m3
Seats (standard config)6-7
Seats (max)10
Suitcases5
Carry-on luggage3
Maximum payload1035 kg
Maximum TakeOff Weight - MTOW4740 kg
Maximum Landing Weight - MLW4500 kg
Fuel capacity1522 L

FAQ

Does the PC-12 NG have a toilet?

Yes. The PC-12 comes as standard with a fully enclosed toilet, positioned between the cockpit and the cabin, and a refreshment area. With six or seven passengers in a typical layout, that equipment keeps a longer flight relaxed and comfortable.

Which airports and airstrips can the PC-12 NG use?

The PC-12 NG needs 793 m for take-off and 661 m for landing, and it can use unpaved surfaces, so it reaches airfields jets cannot. Examples include Saanen for Gstaad, Buochs near Lucerne, Lausanne-Blécherette next to the city centre, Annemasse near Geneva, Toussus-le-Noble outside Paris, Marina di Campo on Elba and St Barthélemy in the Caribbean. It can also fly directly to many safari lodges in South Africa.

What does a PC-12 charter cost?

The cost of a PC-12 charter is set by the trip: the route, your dates, where the nearest available aircraft is positioned and which operator flies it. Rather than publish a standard rate, our advisors price each request individually and explain the quote so you can compare it with alternatives.

How many pilots does the PC-12 NG need?

One. Like every Pilatus aircraft, the PC-12 is certified for single-pilot operation, an approval given only when the workload in flight is manageable for one person, and its modern cockpit makes that possible. A co-pilot seat is fitted as standard, so operators can also fly it with two pilots.

What changed between the PC-12 NG and the PC-12 NGX?

The NGX is the third generation and replaced the NG. It is powered by Pratt & Whitney's new PT6E-67XP, which has electronic engine control, and it adds autothrottle and a quiet mode that lowers cabin noise. The cabin has also been redesigned, with bigger windows, and the avionics are improved. Performance stays close to that of the NG.

What is the PC-12 NG's range between fuel stops?

With IFR reserves the PC-12 NG is rated for 1,803 nm (3,339 km), and its ferry range is 2,088 nm. That is enough for Geneva to Marrakech, New York to Miami or London to Athens without refuelling, so it covers regional and medium-length business trips well.

How fast does the PC-12 NG cruise?

Its cruise speed is 280 kts (519 km/h), with a long-range cruise of 260 kts, which puts it among the faster single-engine turboprops you can charter. That allows efficient point-to-point trips while keeping the flexibility and lower costs of a turboprop.

How many passengers and bags does the PC-12 NG carry?

A standard layout seats six or seven, and up to 10 seats can be fitted in a maximum configuration. There is room for about five suitcases and three carry-on bags, and the large cargo door makes loading bulky items straightforward, which suits leisure trips and business travel with plenty of luggage.

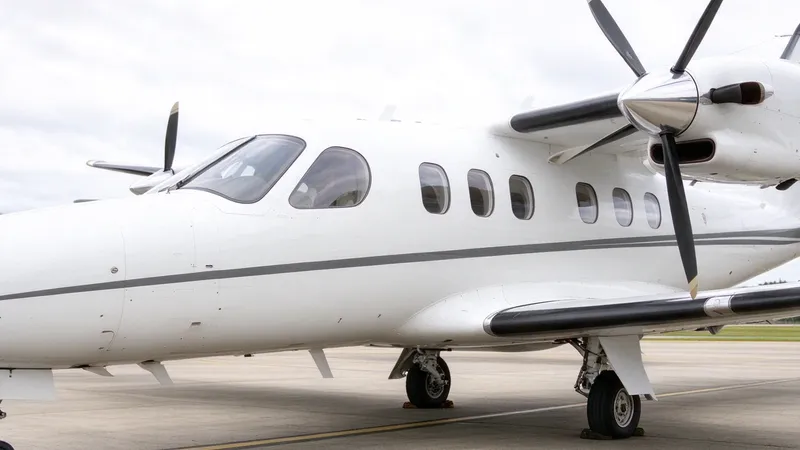

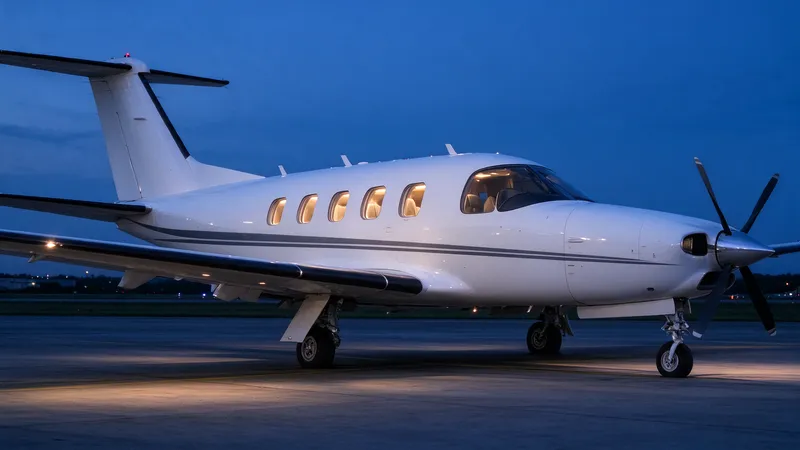

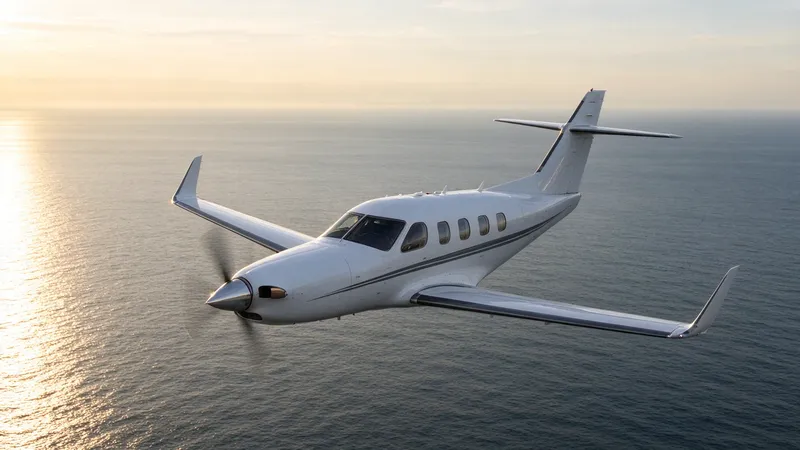

Gallery

Pilatus PC-12 NG, exterior
Pilatus PC-12 NG, photograph
Pilatus PC-12 NG, exterior
Pilatus PC-12 NG, photograph

Figures are published manufacturer data, shown for illustration only. Images are generated for this concept and show the PC-12 NG type, not a specific aircraft. Pilatus Aircraft and PC-12 NG are trademarks of their owner, used only to identify the aircraft.
